Laser Welding Machine
High-quality welding across Industries. Versatility and Minimal Heat Impact.
G-MAK’s advanced Laser Welding Machine range delivers high-speed, high-precision welding for stainless steel, aluminum, iron, and various industrial materials. Designed for professional fabrication and manufacturing, our handheld fiber laser welders offer stronger joints, minimal heat distortion, and exceptional efficiency for modern production environments.
Crafted to meet the most demanding fabrication requirements and elevate production capabilities, G-MAK laser welding machines are meticulously designed for optimal performance and scalability. It can be made with automated capabilities such as vision systems, robotic arms, and a wide field of view, making them optimized for high-speed production environments.

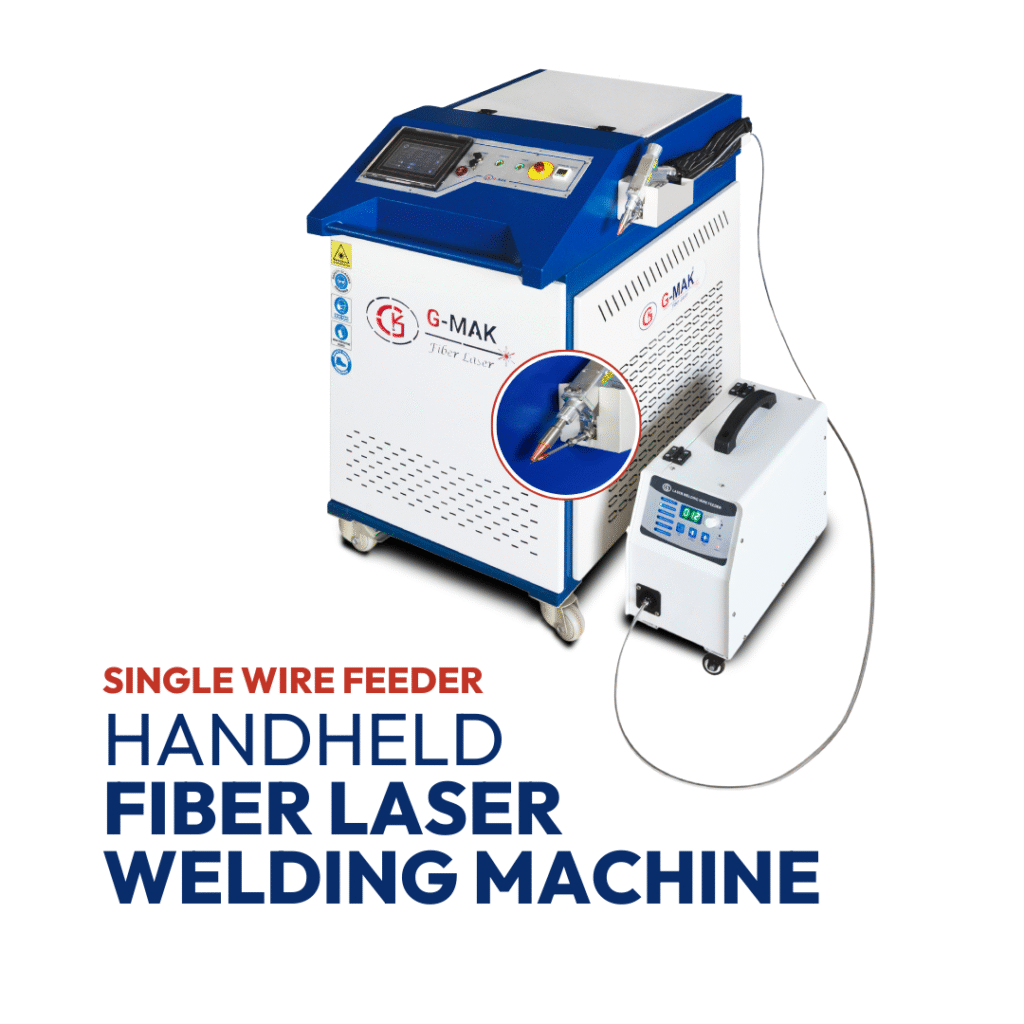

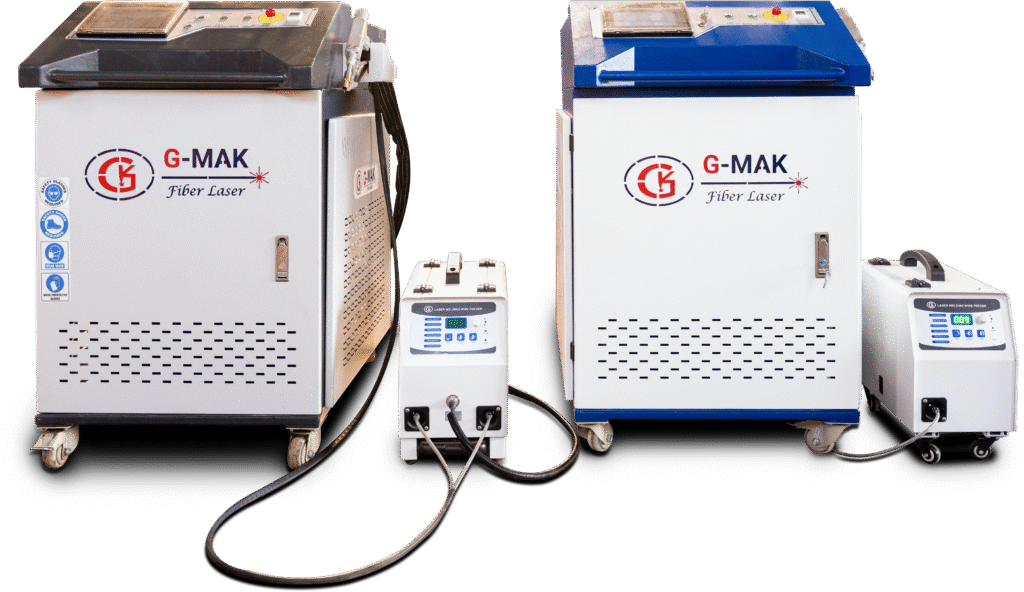

Handheld Fiber Laser Welding Machine
G-MAK’s Handheld Fiber Laser Welding Machine is engineered for high-precision, high-speed welding across stainless steel, aluminum, iron, and other industrial metals. Designed for effortless operation with minimal heat distortion, it delivers cleaner welds, stronger joints, and maximum efficiency—making it ideal for metal fabrication, manufacturing, construction, and industrial repair applications.
It can weld thin aluminium, stainless steel sheets, iron sheets, galvanized sheets and other metal elements, effortlessly replacing the traditional argon arc welding, electric welding and other processes.
Handheld laser welding machines can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guard rails, distribution boxes, stainless steel homes and other industrial complex and irregular welding process.

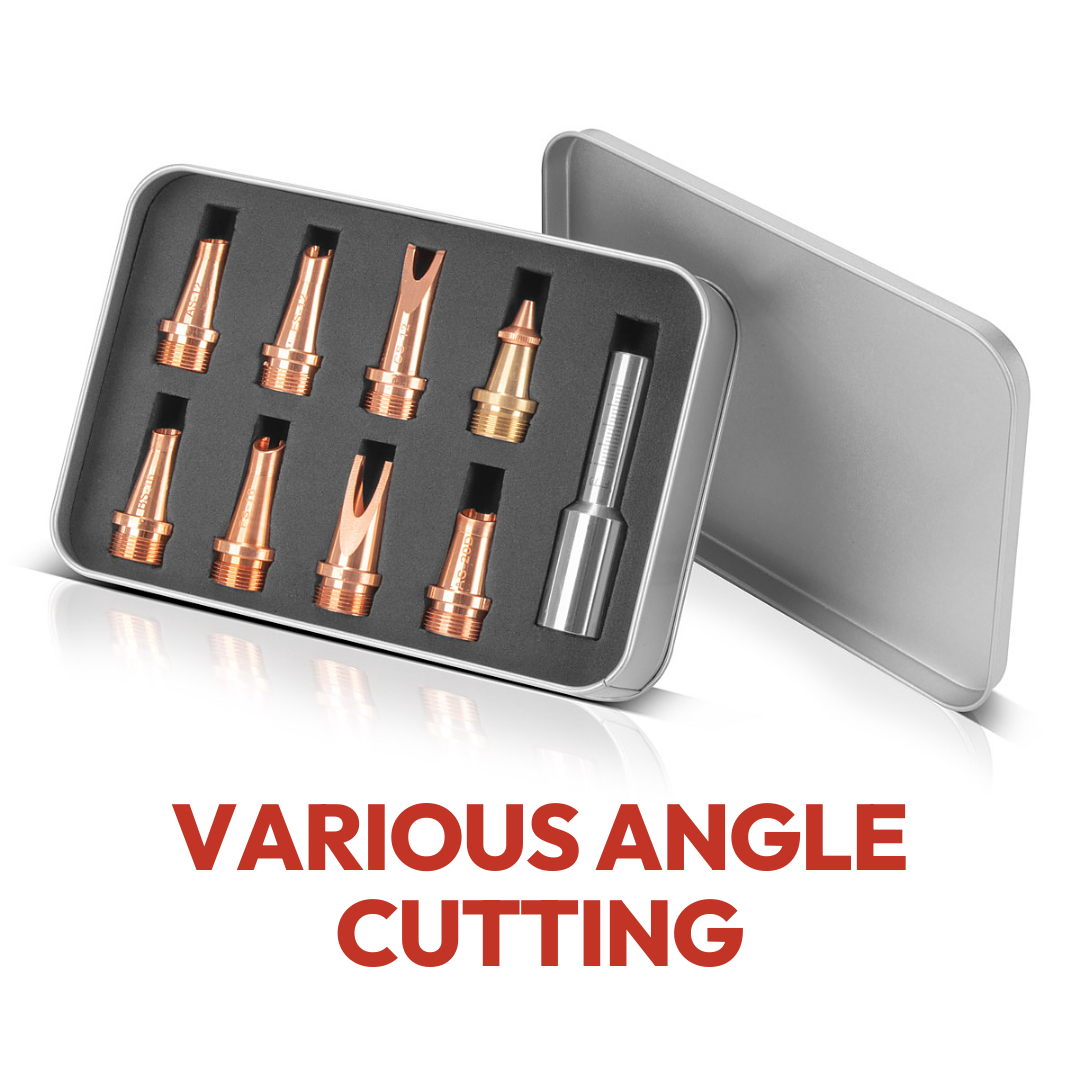

Different types of Laser Welding Head Nozzles
Different types of Laser Welding
Handheld Fiber Laser Welding Machine Ability for Reference
| Stainless Steel | Iron | Carbon Steel | Aluminum | Galvanized Sheet |
|---|---|---|---|---|
| 3mm | 3mm | 1.7–2mm | 3mm | - |
| Stainless Steel | Iron | Carbon Steel | Aluminum | Galvanized Sheet |
|---|---|---|---|---|
| 4mm | 4mm | 1.7–2.5mm | 4mm | 1.5–2mm |
| Stainless Steel | Iron | Carbon Steel | Aluminum | Galvanized Sheet |
|---|---|---|---|---|
| 6mm | 5mm | 1.7–2.5mm | 5mm | 1.5–3mm |
Other Products
Frequently Asked Questions About Laser Welding Machines
Handheld laser welding machines can weld stainless steel, carbon steel, mild steel, aluminum, brass, copper, and galvanized sheets. They provide deep penetration and smooth finishing, making them ideal for diverse fabrication applications.
Laser welding offers higher speed, minimal heat distortion, deeper penetration, stronger welds, and a more attractive finish. It also requires less post-processing, making it significantly more efficient than MIG, TIG, or arc welding.
Depending on the model:
1500W: Stainless steel 3 mm, Aluminum 3 mm
2000W: Stainless steel 4 mm, Aluminum 4 mm
3000W: Stainless steel 6 mm, Aluminum 5 mm

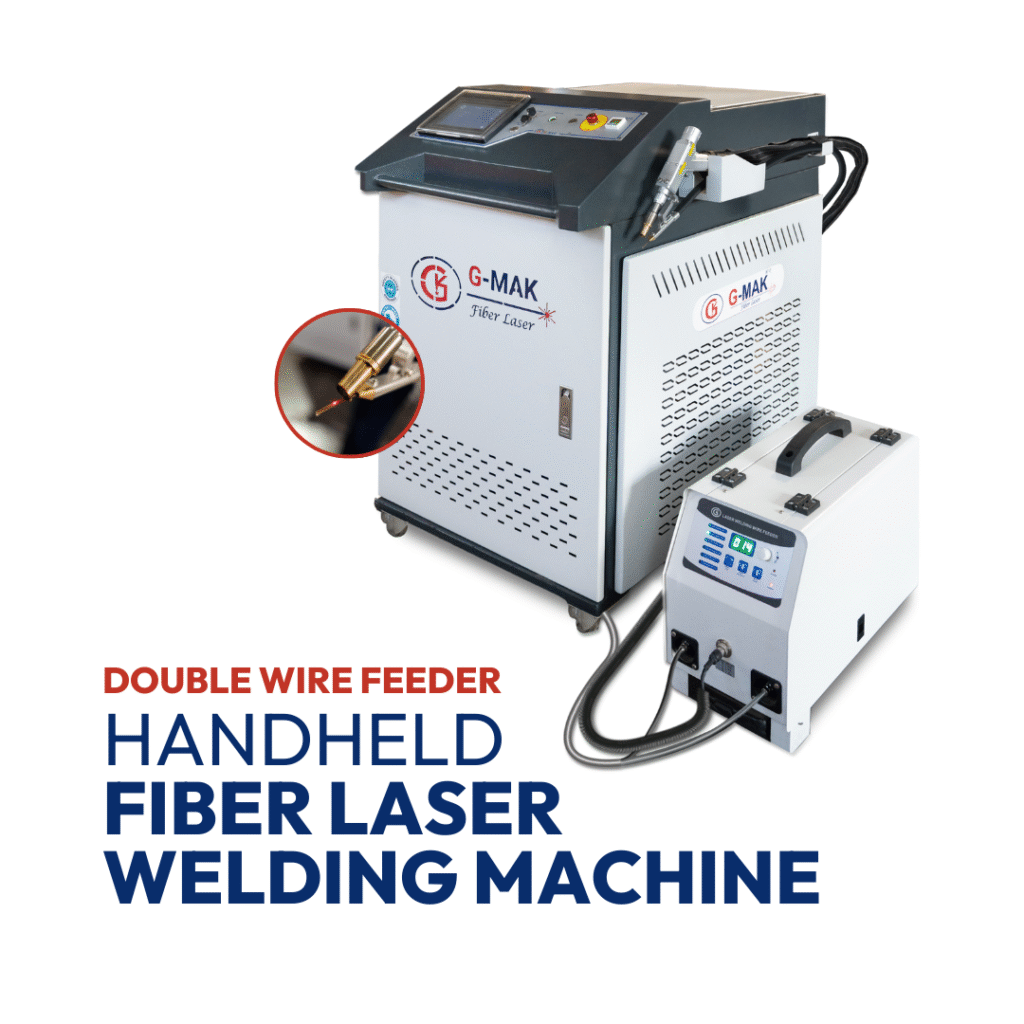

Our machines also support both single-wire and double-wire feeding systems.
Yes. Our machines include protective sensors, stable beam output, automatic wire feeding, and heat-control systems. Users should wear proper laser safety goggles and follow recommended operating guidelines.
Absolutely. Laser welding provides stronger joints, less heat impact, and up to 4x faster welding speed, making it suitable for most fabrication, repair, and manufacturing applications.
Yes. G-MAK offers full installation, operator training, service support, and spare parts availability to ensure smooth operation and long-term machine reliability.
