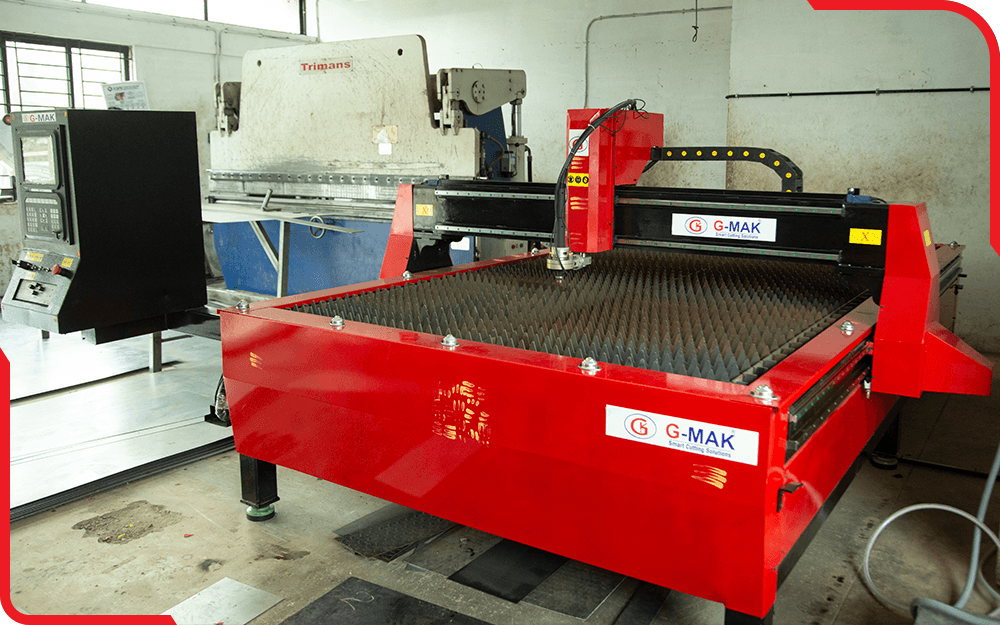

CNC Flame / Plasma Profile Cutting Machine -
Easy Cut
Our Easy Cut Plasma machines facilitate seamless installation and operations, making them ideal for interior and exterior design cutting works. They provide exceptional value for money at just one-third the price of a laser-cutting machine. Perfect for cutting all kinds of metal elements like MS, SS, Aluminium, Copper, Brass, GI and Alloy Steel our machines do not have any constraints concerning metal thickness, typically observed in laser cutting for SS and Al elements.
Our lineup of Easy Cut profile cutting machines includes:
- Hypertherm Powermax 45XP, 12 mm MS (max Pierce) with marking capability
- Hypertherm Powermax 65A, 16 mm MS (max Pierce)
Technical Specifications
- Cutting width: 1500mm
- Cutting length: 3000, 4000, 5000 mm
- Positioning accuracy: ± 0.7 mm
- Repeatability: ± 0.7 mm
- High rapid speed: 10000 mm/min
Features
- Sturdy structure made of steel
- Seamless installation directly on the shop floor, without necessitating foundation
- Compact design saves valuable space
- No separate cutting table is required
- Integrated water bed cutting table, eliminating the need for a separate cutting surface and fume extractor
- Precision helical rack and pinion gear drive system for X and Y axes to ensure smooth operation
- Uses Hiwin linear rails and blocks for optimal performance
- Enables high-speed and high-precision cutting
- Automatic torch height control on plasma equipped with anti-collision for safety
- Cable chain on X and Y axes to protect cables and hoses from damage
- Electric limits at both axes end for operational and machine safety
- Remote control for convenient machine operation (optional)
- Laser pointer provided for effortless plate alignment
- Offline nesting software with an integrated 2D drawing facility to streamline the process and improve productivity for cost-effective operations

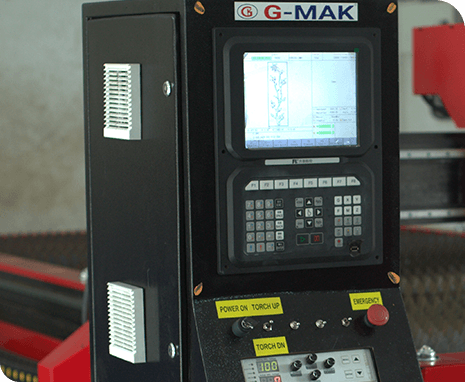

CNC Controller
- Equipped with FLMC 2300 B CNC featuring a 10.4-inch colour LCD monitor
- Compact keyboard design and easy-to-input files
- Includes 53 standard shapes for easy programming
- Shape operations like proportion, rotation and mirror are possible
- Shape can be arranged in a matrix, interaction and stacked modes
- Includes a USB port for convenient CNC program input

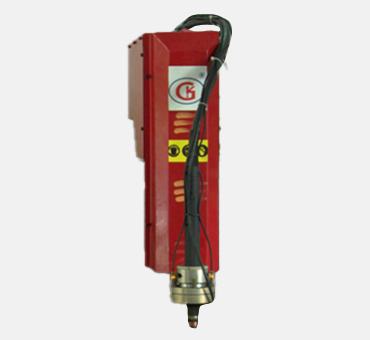

Automatic Torch Height Control on Plasma with Anti-Collision

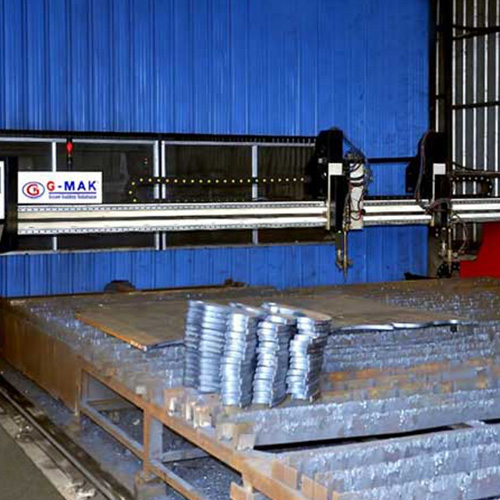

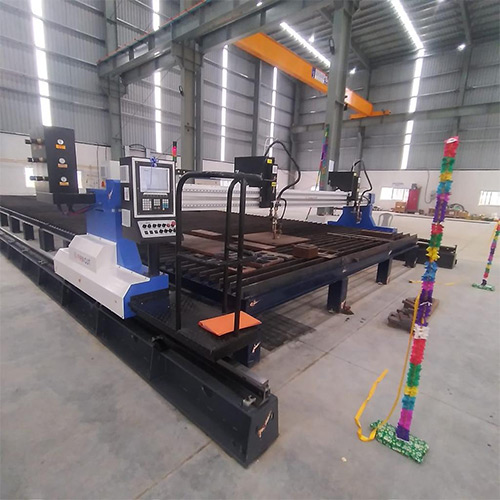

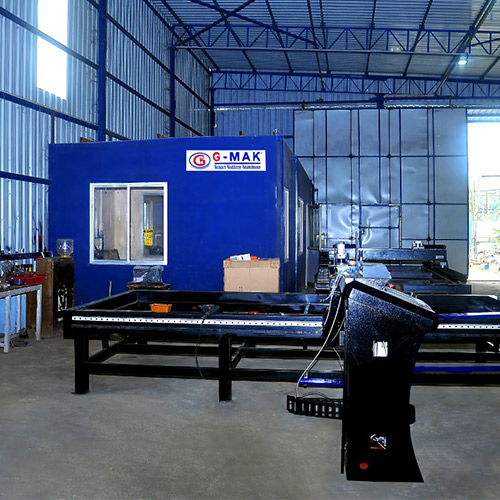

Glimpses of Our Installed Machines
Our Easy Cut - Videos

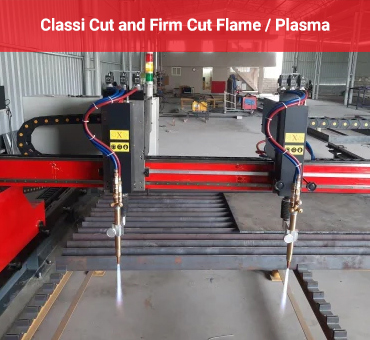

Other Flame/Plasma Cutting Machine Models
