CNC Flame / Plasma Profile Cutting Machine -
Classi Cut and Firm Cut
CNC Plasma Cutting Machine – Classi Cut & Firm Cut
Our Classi Cut and Firm Cut CNC Plasma Cutting Machine/ Flame Profile Cutting Machines are engineered for precision, durability, and high-speed performance. Built with a heavy-duty gantry structure and a dual-drive system, these machines deliver accurate, consistent, and efficient cutting results for industrial applications.
Designed for 24/7 continuous production, the machines support both plasma cutting and multi-torch flame cutting, making them ideal for a wide variety of manufacturing needs—from small fabrication units to large industrial plants. Their reliable construction, seamless installation, and low maintenance requirements ensure long-term efficiency and boosted productivity for all cutting operations.

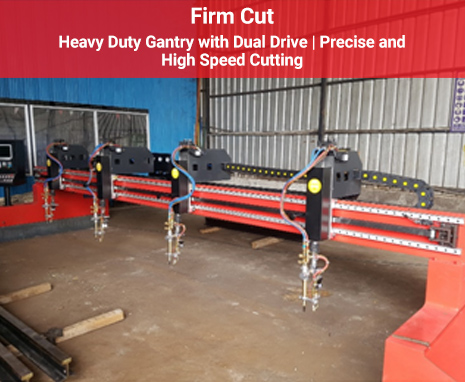

Firm Cut – Built for Heavy-Duty Industrial Cutting
Delivers powerful performance with a reinforced gantry, dual-drive system, and stable operation for continuous 24/7 production.

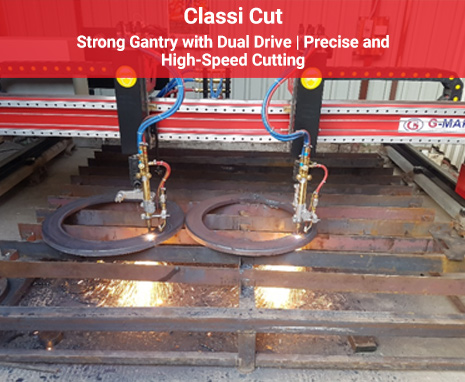

Classi Cut – Precision & High-Speed Cutting
Engineered for accurate, consistent cutting with a smooth gantry movement, ideal for fabrication units and industrial applications.
G-MAK Classi Cut Technical Specifications
- Cutting width: 2000, 3000, 4000 mm
- Cutting length: 6000, 8000, 10000, 12000 mm
- Positioning accuracy: ± 0.7 mm / mtr
- Repeatability: ± 0.7 mm / mtr
- Rapid speed: 10000 mm / min
- Suitable for: Flame / Plasma cutting
- Flame cutting torch (Oxy-fuel): 1 to 2 torch stations (max)
G-MAK Firm Cut Technical Specifications
- Cutting width: 4000, 5000 mm
- Cutting length: 6000, 8000, 10000, 12000 mm
- Positioning accuracy: ± 0.7 mm / mtr
- Repeatability: ± 0.7 mm / mtr
- Rapid speed: 10000 mm / min
- Suitable for: Flame / Plasma cutting
- Flame cutting torch (Oxy-fuel): 1 to 4 torch stations (max)
Flame Cutting
Flame Cutting – Heavy-duty cutting for thick metal plates using efficient oxy-fuel technology.
- Cutting Gas: Oxygen
- Fuel Gas: Acetylene / LPG
- Cutting thickness: MS 5 to 300 mm
- Manual gas control valves on each torch enable precise flame adjustment by preheating oxygen and fuel gas
- Features a smooth ball screw-driven torch up / down slide mechanism
- Equipped with the best quality cutting torch from top-notch brands with ESAB flashback arrestor for enhanced safety
- Optional automatic height control and auto ignition device available for added convenience
- Utilizes high-quality ESAB gas regulators and ESAB gas hoses to ensure reliability and performance
- Easy-to-access regulators for adjusting gas pressure in the gas control assembly
- Optimized gas consumption and safety measures resulting in reduced burning loss and enhanced operational efficiency
Plasma Cutting
Plasma Cutting – High-speed, precise cutting ideal for MS, SS, aluminium, and alloy materials.
- Versatile and ideal for cutting wide-ranging metal elements like MS, SS, Aluminium, Copper, Brass, GI and Alloy Steel
- Our lineup of Classi Cut profile cutting machines includes:
- Hypertherm Powermax 45XP, 12 mm MS (max Pierce) with marking capability
- Hypertherm Powermax 65XP, 16 mm MS (max Pierce)
- Hypertherm Powermax 85XP, 19 mm MS (max Pierce)
- Hypertherm Powermax 105XP, 22 mm MS (max Pierce)
- Hypertherm Powermax 125XP, 25 mm MS (max Pierce)
- Hypertherm Max Pro 200, 32 mm MS (max Pierce) LongLife air and Oxygen Plasma
- All plasma cutters except for Max Pro 200 operate with Air Plasma ranging from 45 to 125 Amp
- Plasma cutting eliminates thickness limitations observed in Laser cutting for SS, Aluminium, Brass and GI materials, enhancing versatility and efficiency
- Offline nesting software with an integrated 2D drawing facility to streamline the process and improve productivity for cost-effective operations
Features
- Includes a USB port for convenient CNC program input
- Stress-relieved structures to minimize deformation and ensure optimal performance
- Features a heavy rail with a high-quality rack on the Y-axis for stability and precision
- Utilizes Japanese brand eccentric bearings to ensure stability and accuracy during operations
- Equipped with automatic torch height control on plasma including an anti-collision feature for added safety
- Includes cable chain on X and Y axes to protect cables and hoses from damage
- Electric limits at axes ends prioritize operator and machine safety
- Optional remote control for machine operations for added convenience and flexibility
- Equipped with laser pointer provided for easy plate alignment to streamline setup and enhance accuracy
CNC Controller
- Equipped with FLMC 2300 B CNC featuring a 10.4-inch colour LCD monitor
- Compact keyboard design and easy-to-input files
- Includes 53 standard shapes for easy programming
- Shape operations like proportion, rotation and mirror are possible
- Shape can be arranged in a matrix, interaction and stacked modes
- Includes a USB port for convenient CNC program input
Glimpses of Our Installed Machines

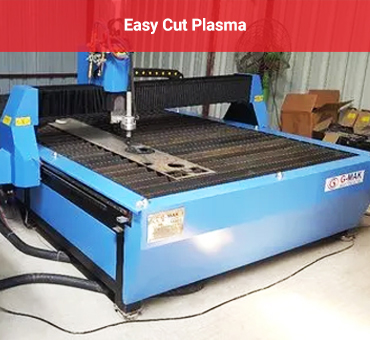

Other Flame/Plasma Cutting Machine Models
